SPECIFICATIONS

120mm Fan Options: 10

140mm Fan Options: 4

Application: Desktop

Brand Name: Jonsbo

Case Size: 474mm * 311mm* 489mm

Case Weight: 19

Chassis Type: Desktops

Choice: yes

Dust Filters: Bottom

Form Factor: ATX,MicroATX,Mini-ITX

Front Ports: USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

High-concerned chemical: None

Internal 2.5" Drive Bays: 2

Internal 3.5" Drive Bays: 4

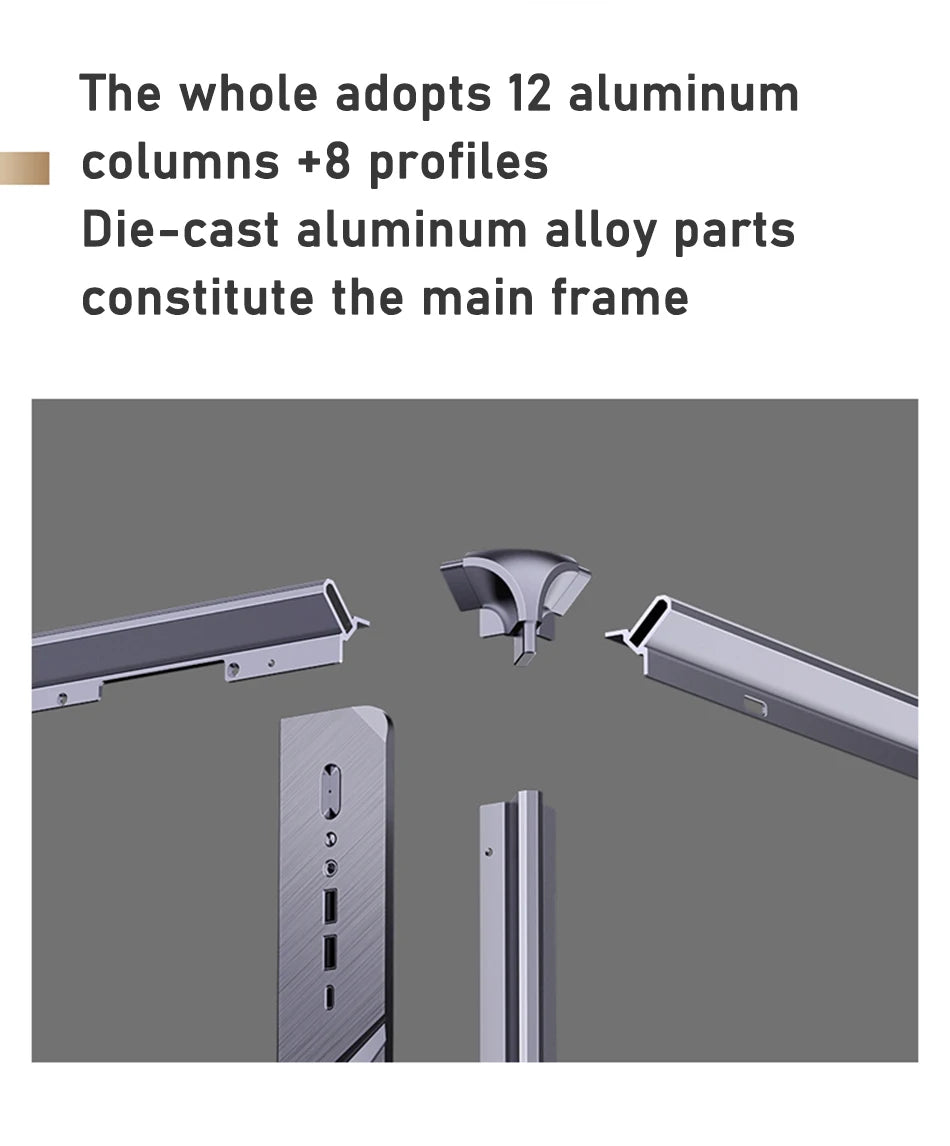

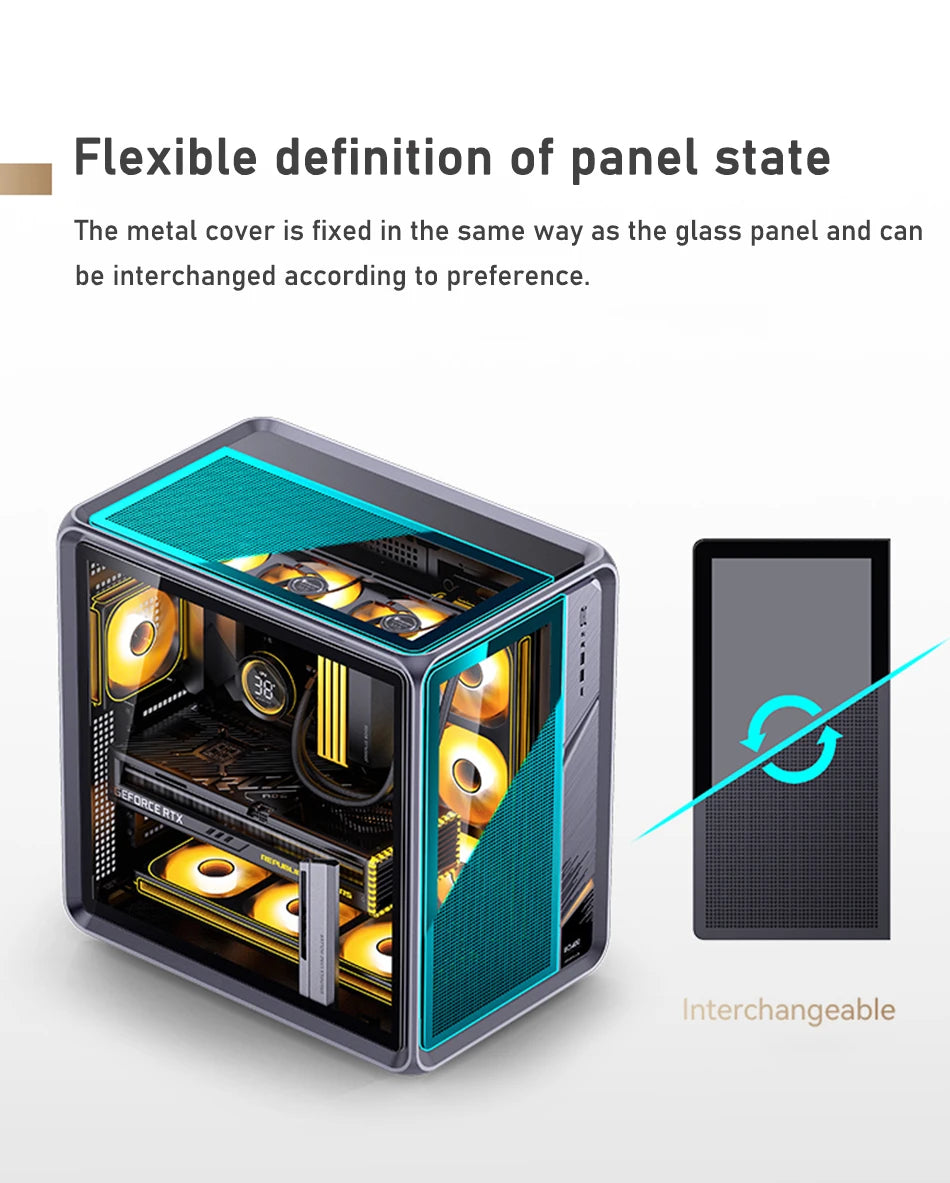

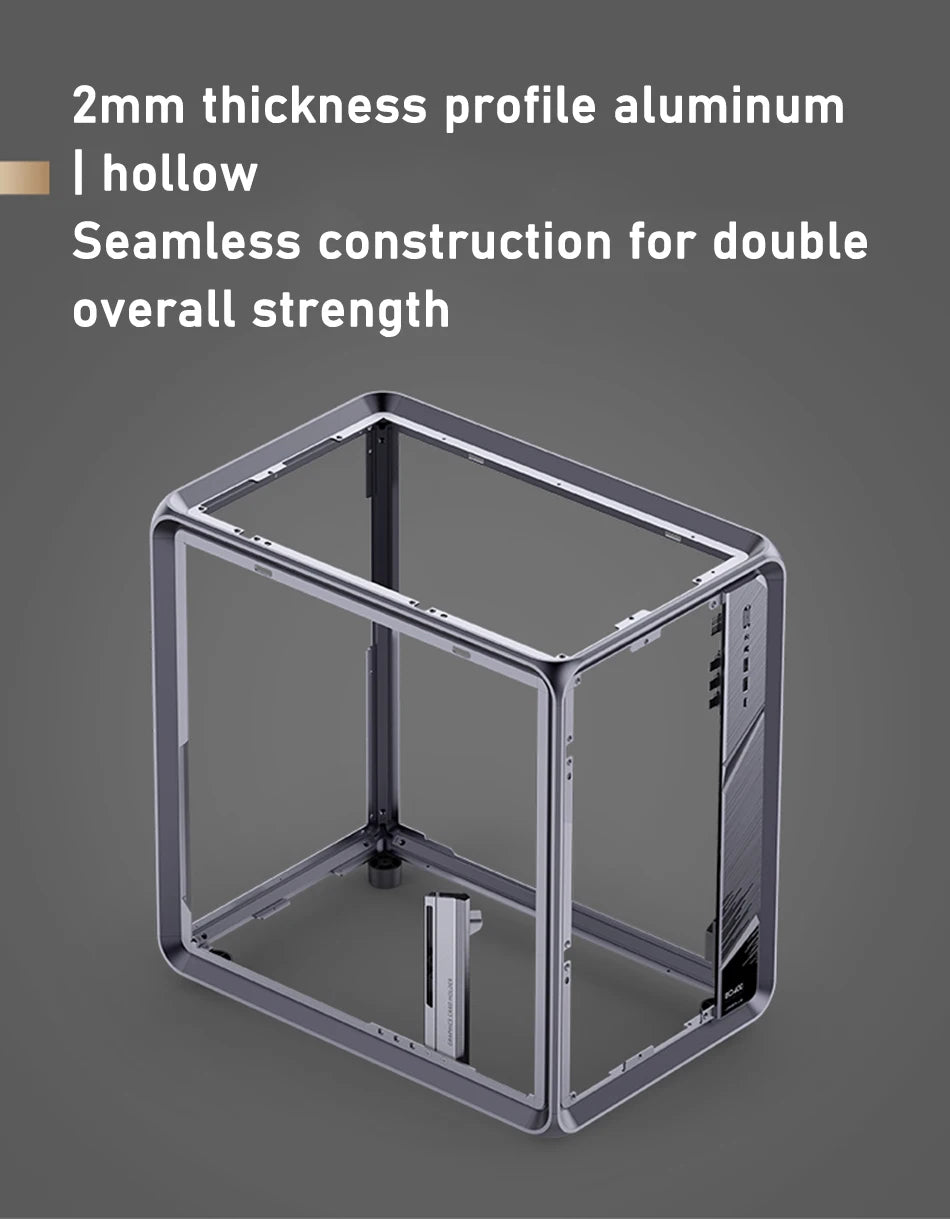

Material: Aluminum alloy,Tempered glass,others

Max CPU Cooler Height: 173

Max GPU Length: 435

Max PSU Length: 200

Model Number: BO400

Origin: Mainland China

Power Model: ATX

Power Supply Mounted: Bottom

RGB Support: NO RGB

Radiator Size: 360mm

Series: BO400

Type: Mid Tower

With Fan: No

With Power Supply: Yes

With Side Panel Window: Yes

semi_Choice: yes

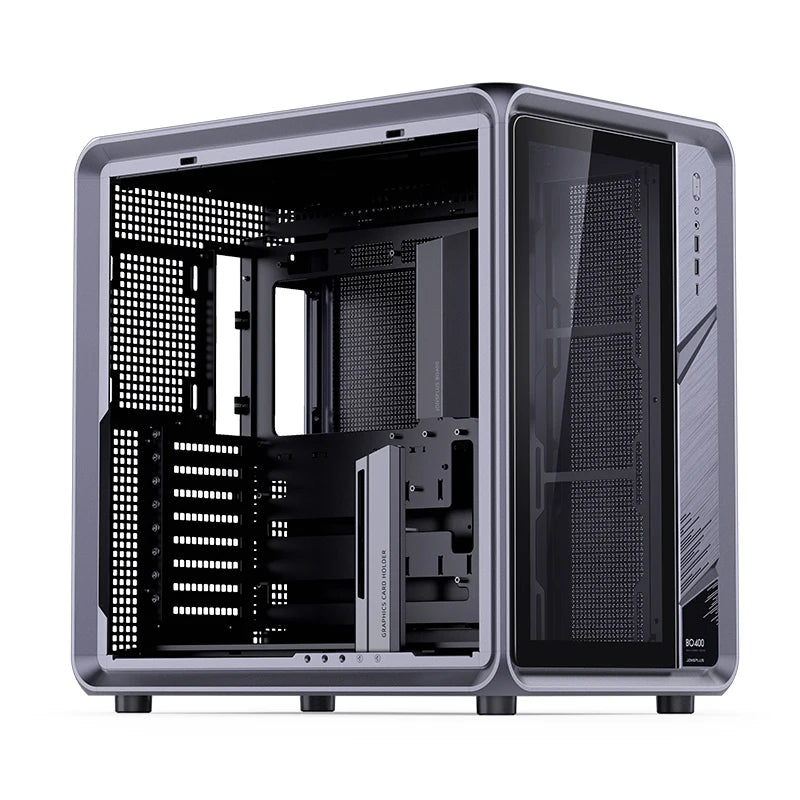

Product specification

Model：BO400

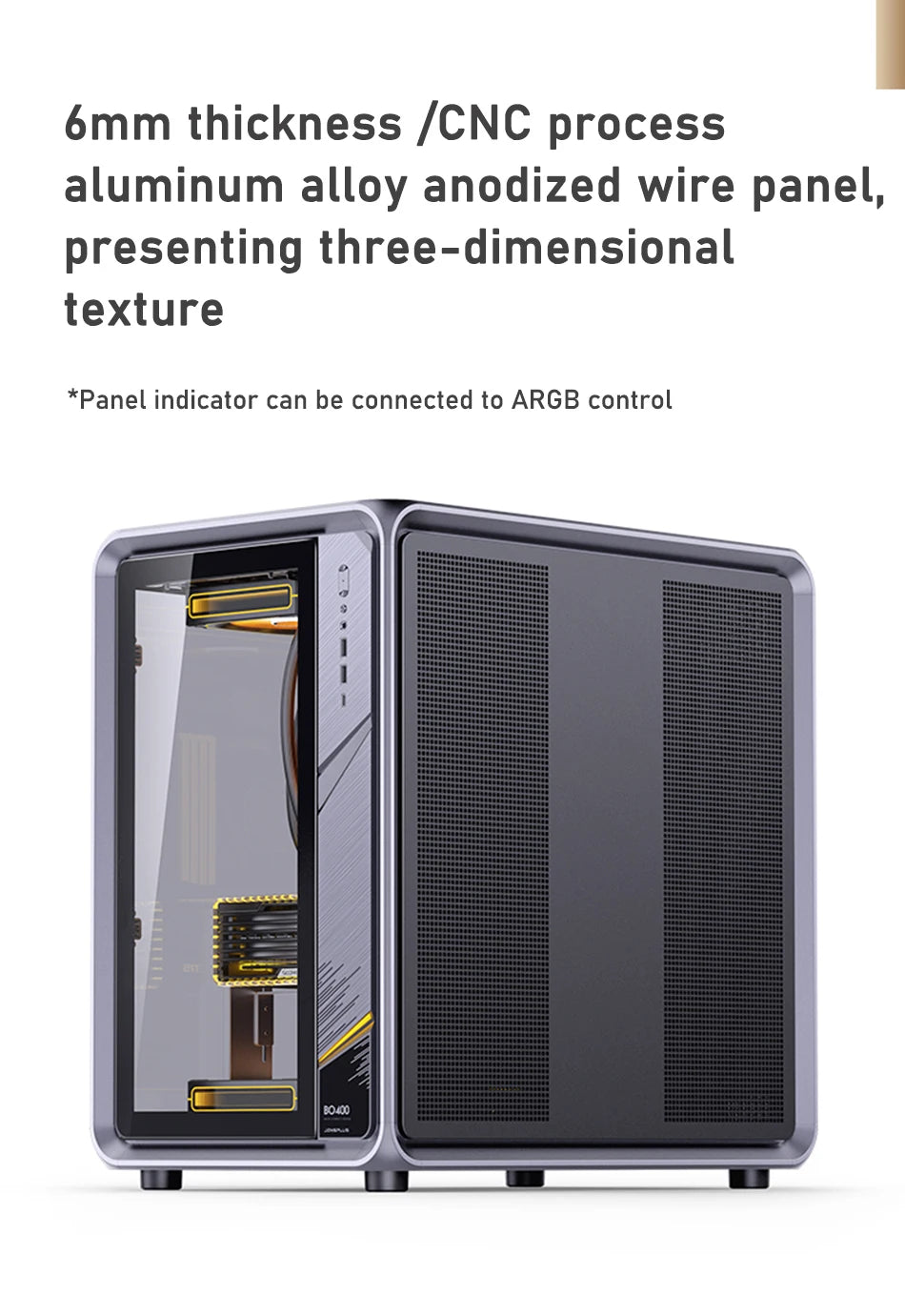

Case Material：SPCC Steel & SGCC Steel
Dimensions：474mm * 311mm* 489mm（depth/width/height）

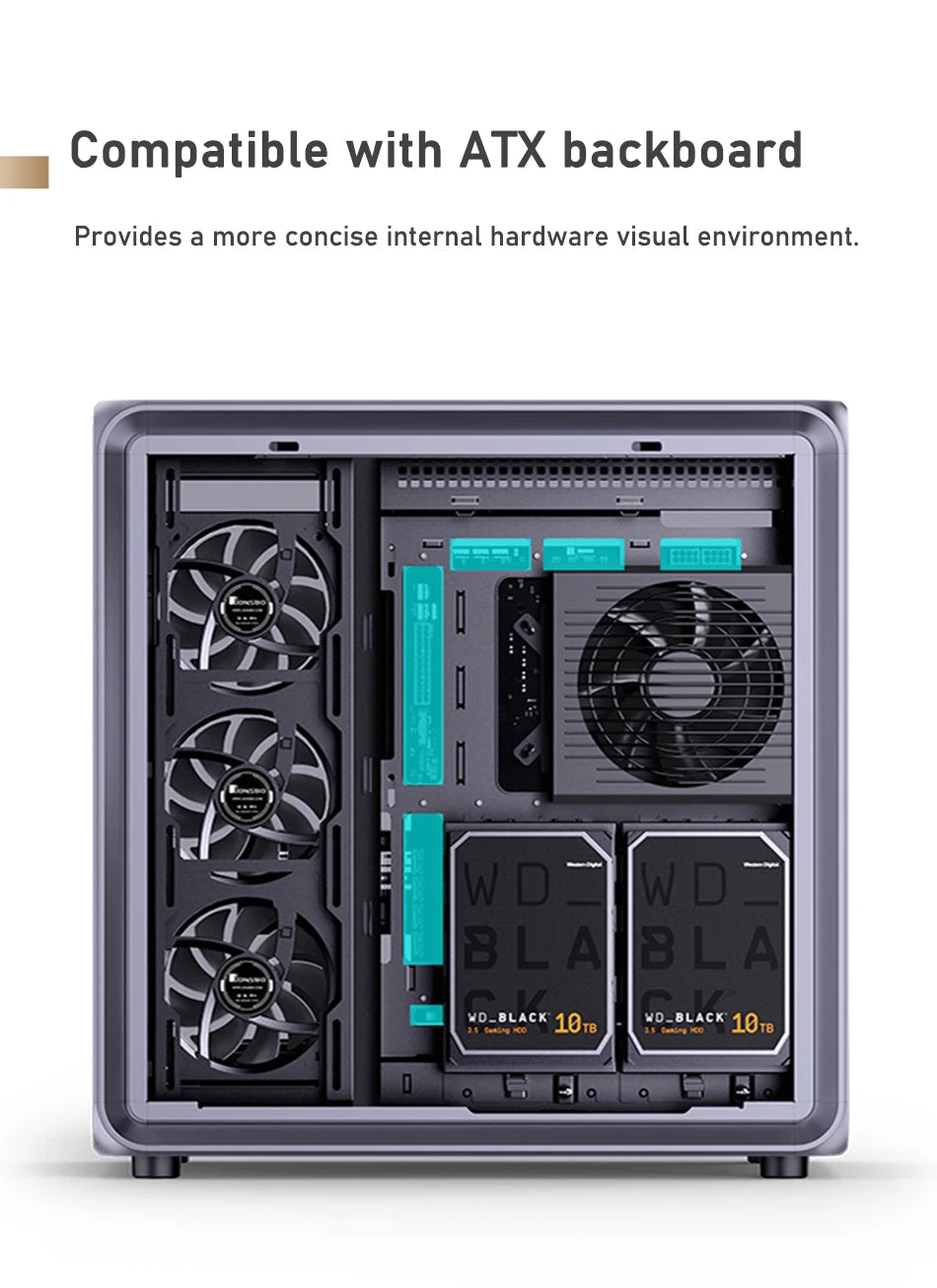

Motherboard Support：MINI-ITX / MICRO-ATX / ATX

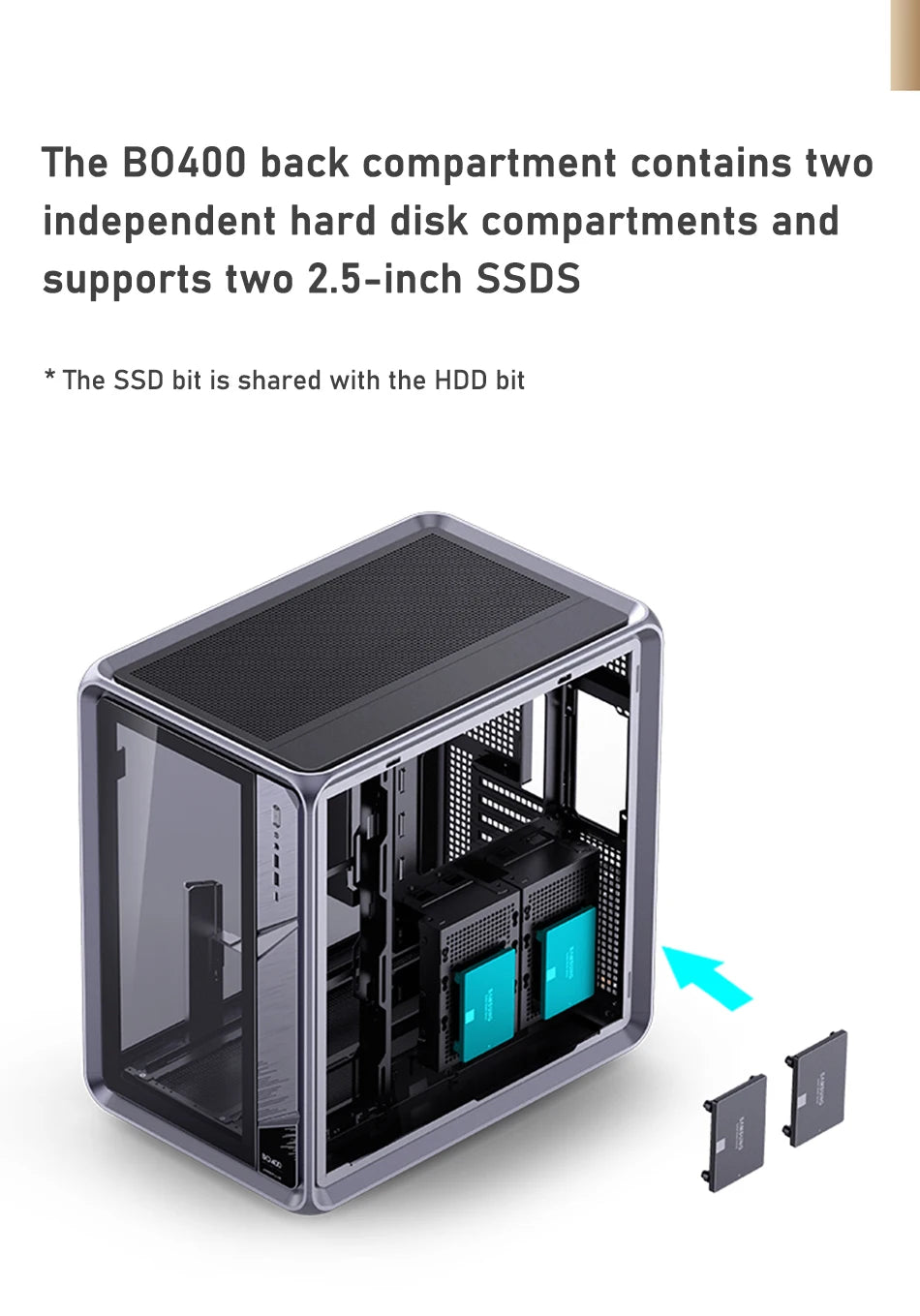

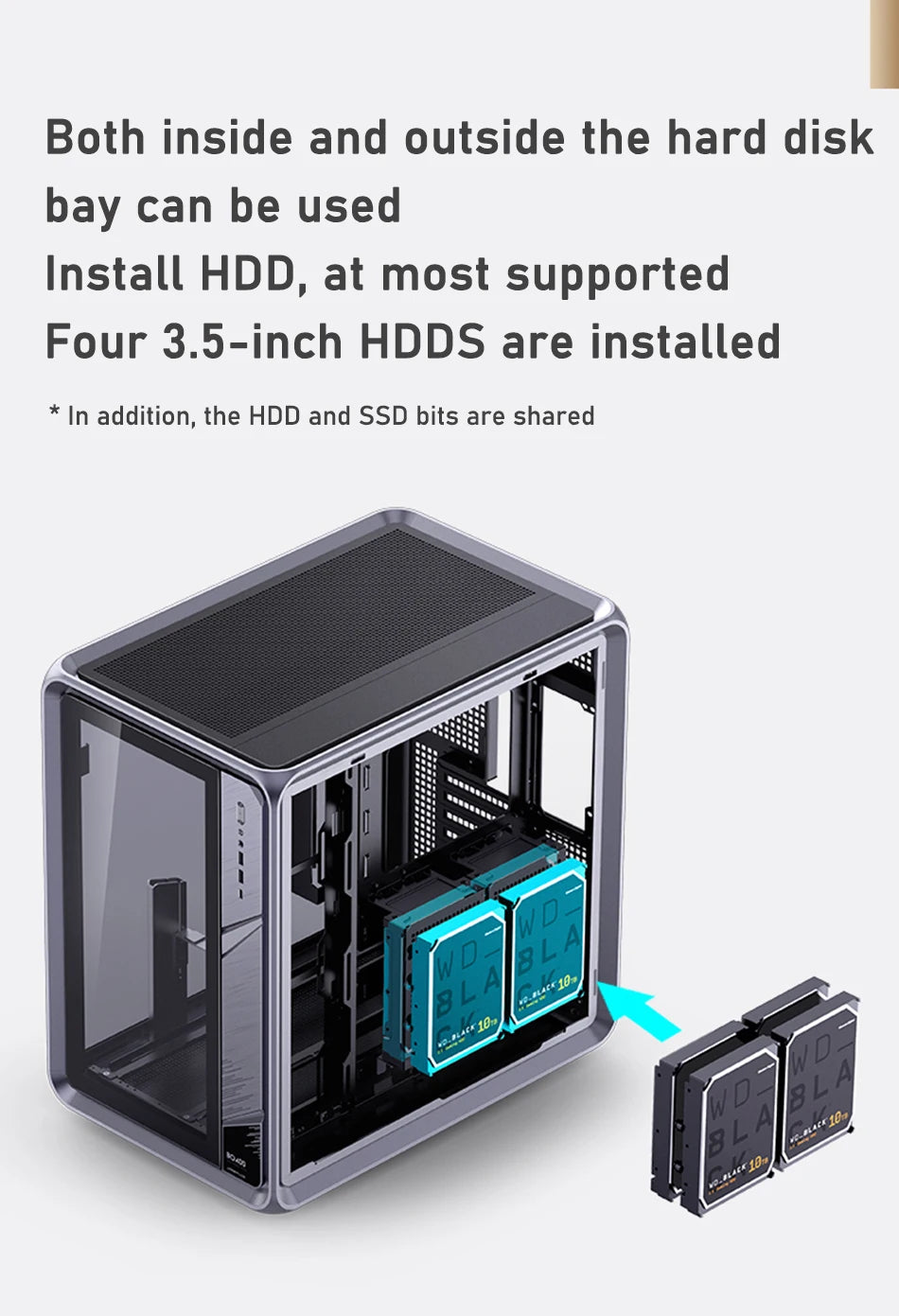

Drive Bay：2.5〞SSD：up to 2/3.5〞HDD：up to 4

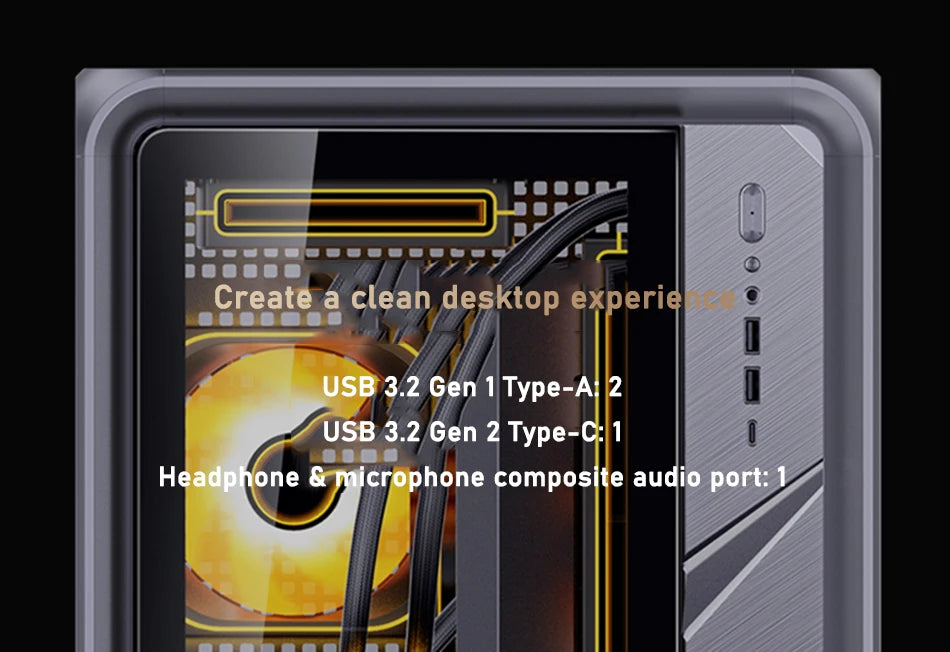

Front IO Port：USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

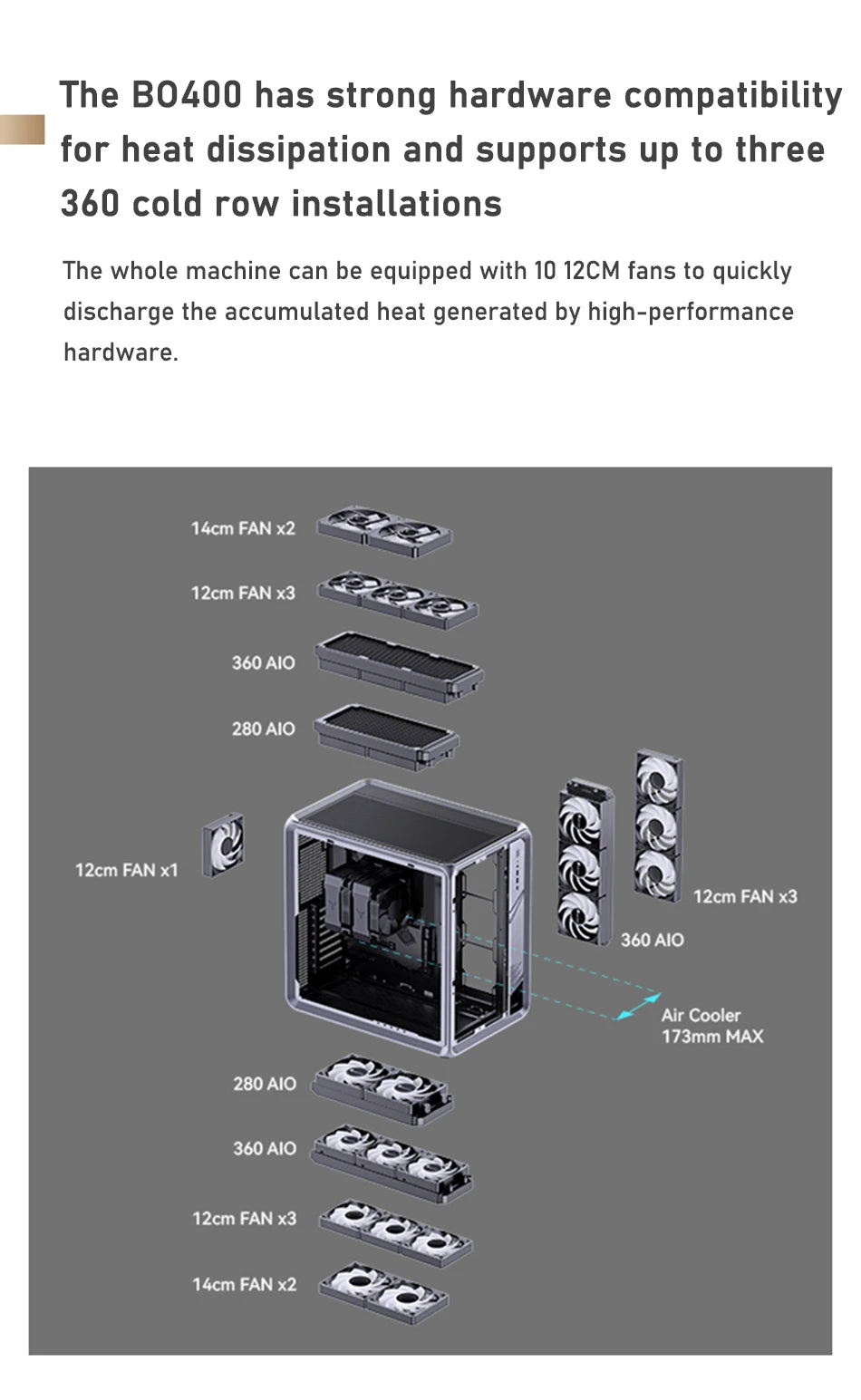

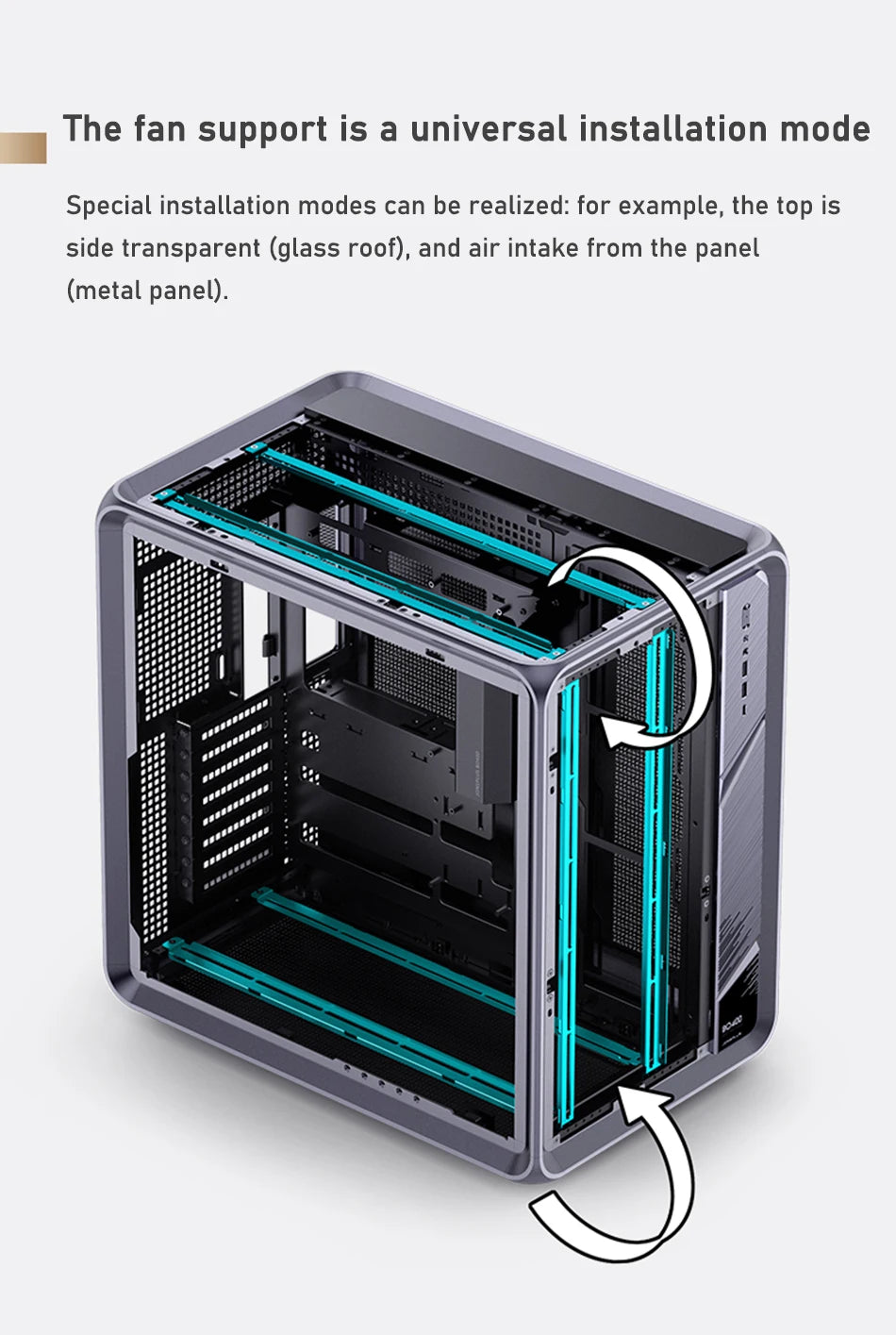

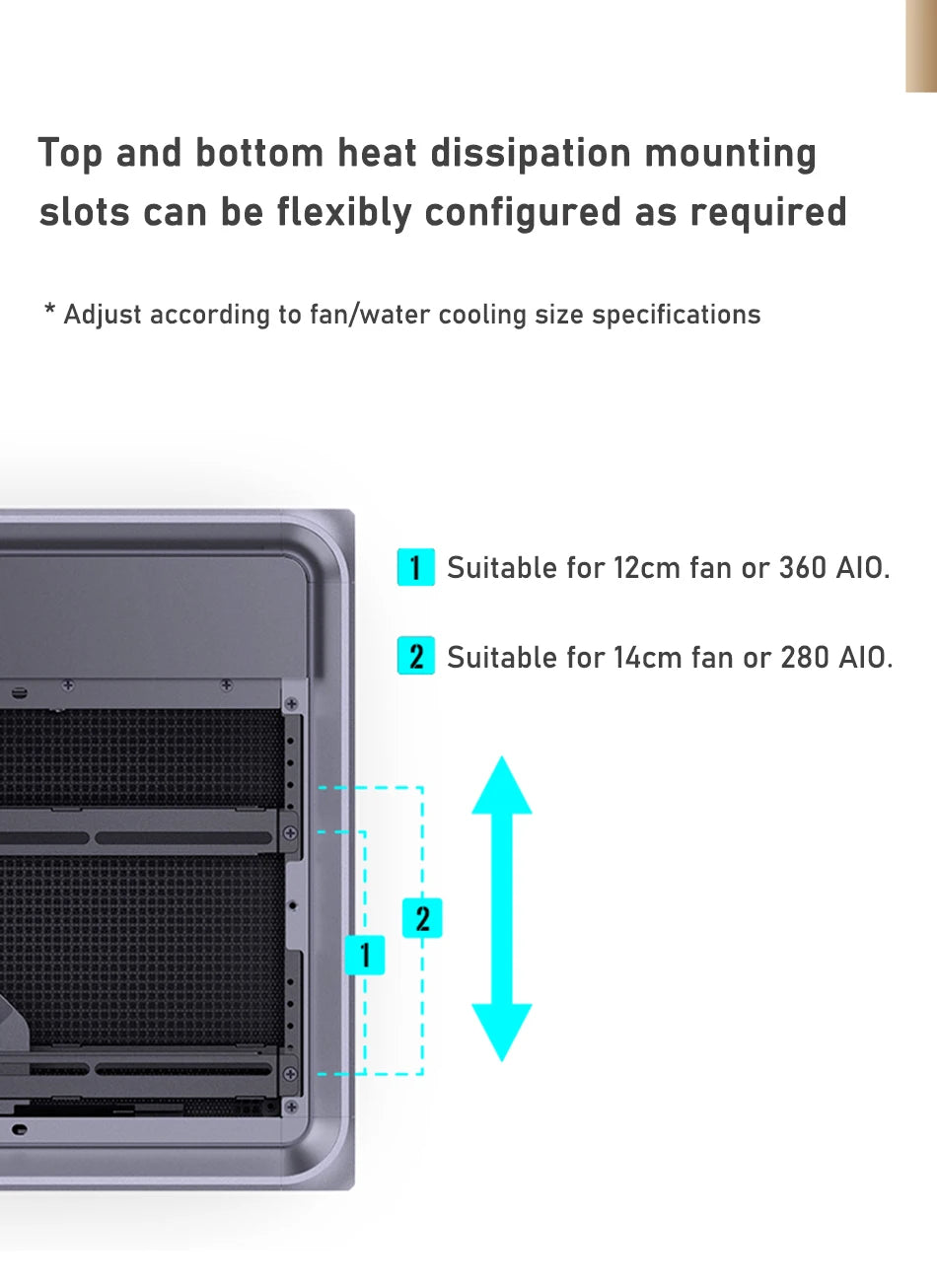

FAN：
Top：3*120mm/2*140mm；

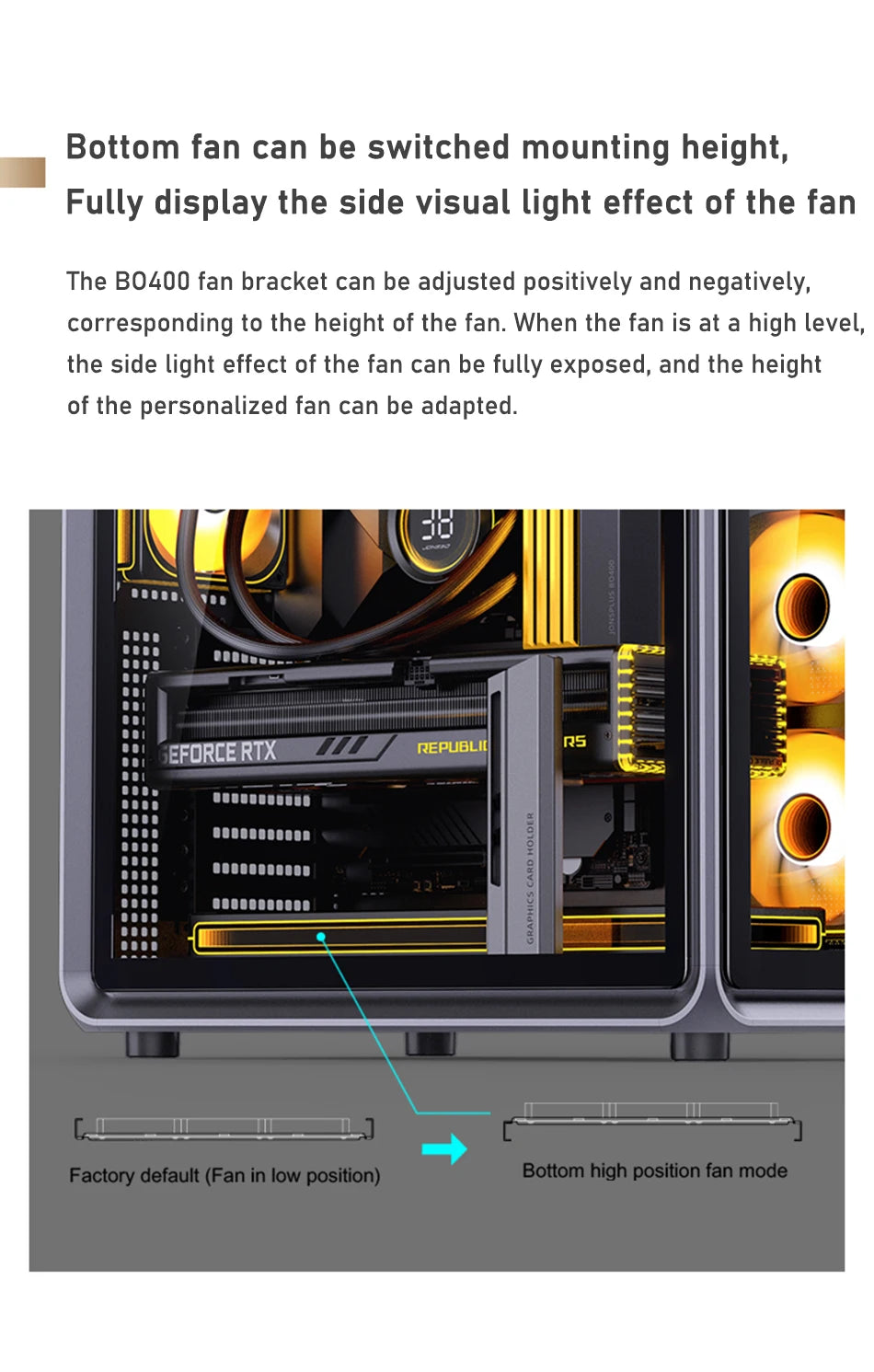

Rear：1*120mm; Bottom：3*120mm/2*140mm；
Side：3*120mm

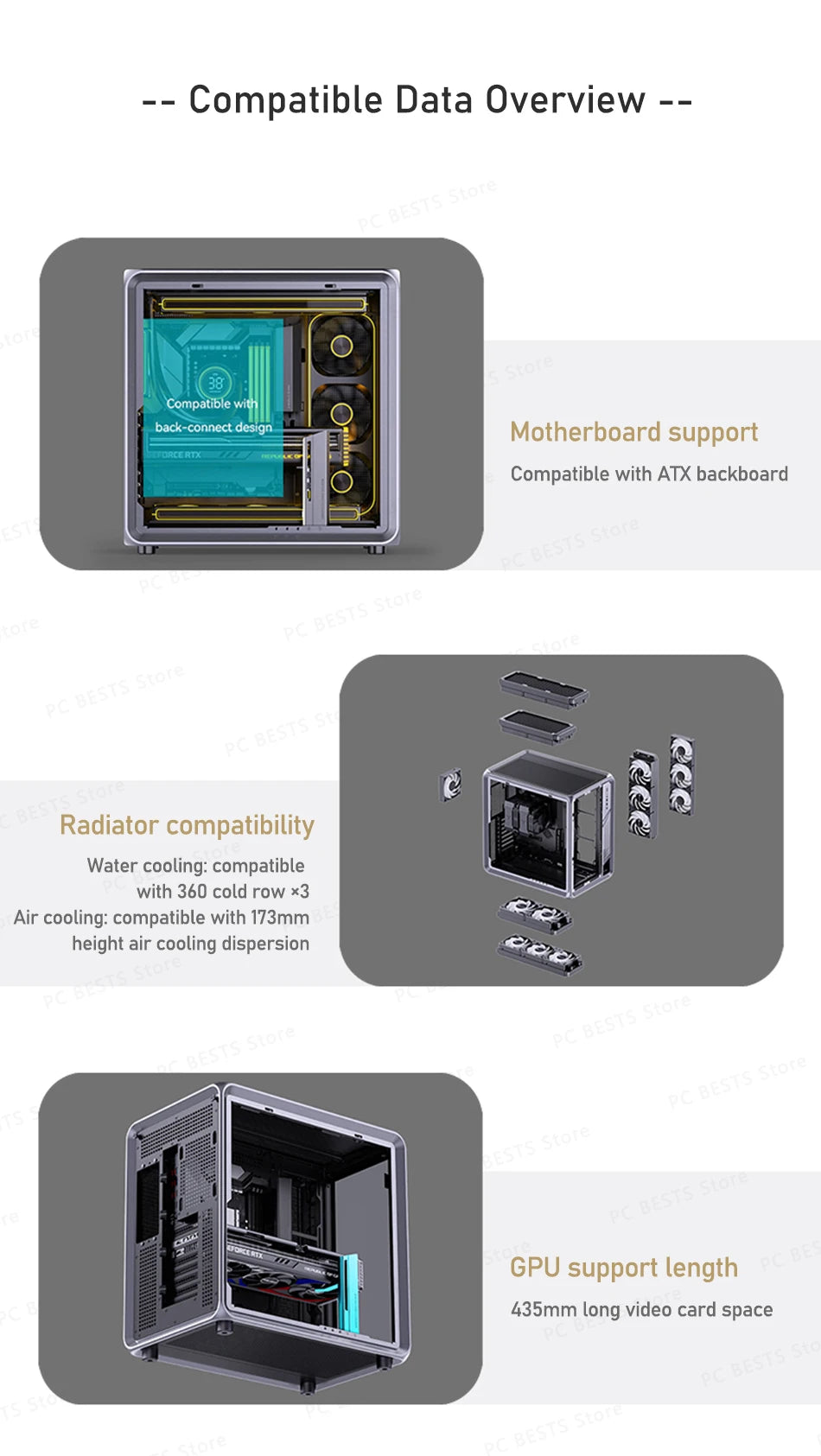

Radiator support：
Top 240mm/280mm/360mm；
Side：360mm；
Bottom：240mm/280mm/360mm
ATX PS2 PSU Clearance： ≤200mm

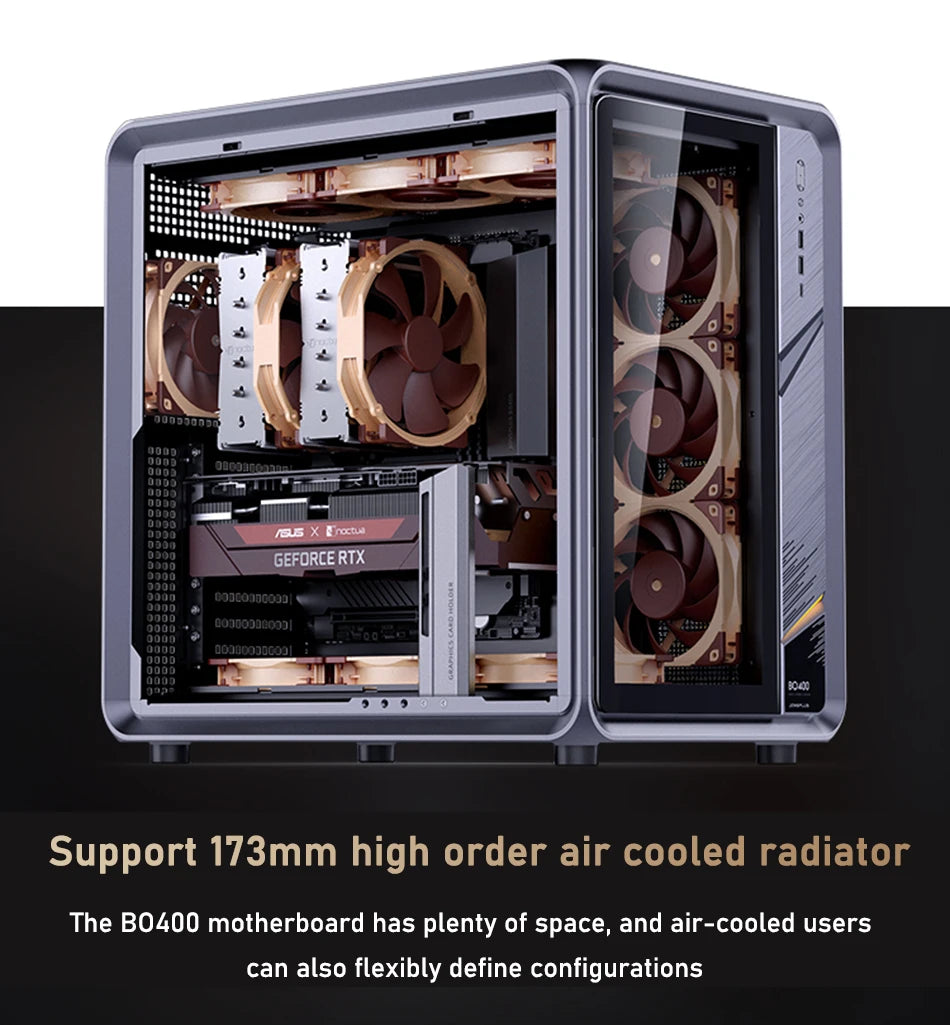

CPU Air Cooler Clearance：173mm

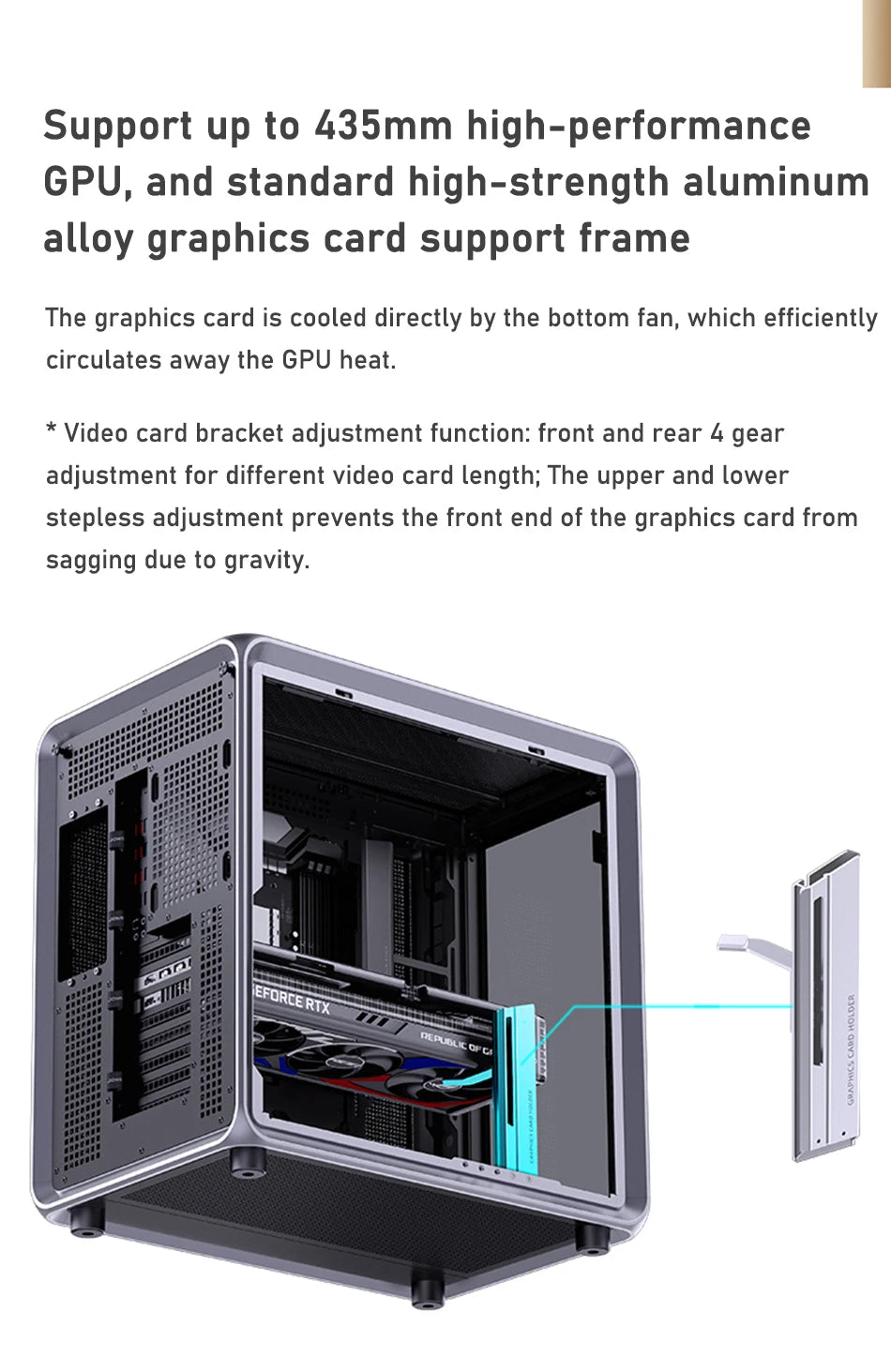

GPU Clearance：Up to 435mm
Weight：N.W. 12.9kg / G.W. 18.3kg
